Sheet Music Page

The Sheet Music Page (/sheet-music) is PianoRhythm's central repository for browsing, searching, and managing sheet music. It provides a comprehensive interface for users to discover, upload, and interact with sheet music content across multiple formats.

Overview​

The sheet music page serves as a searchable repository where users can:

  • Browse and search through available sheet music
  • View detailed information about individual pieces
  • Upload their own sheet music compositions
  • Play and preview sheet music with audio synthesis
  • Filter content by category, difficulty, tags, and other criteria
  • Manage favorites and personal collections

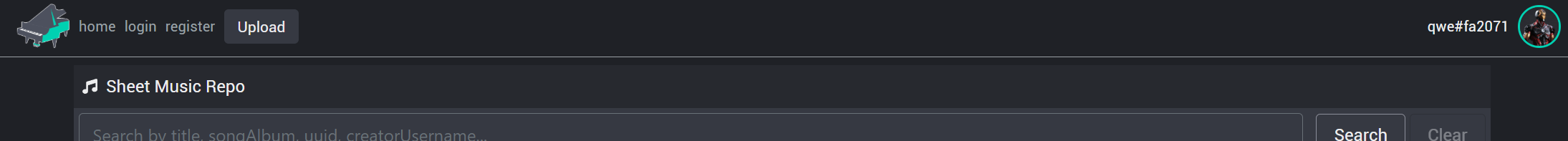

Page Structure​

  • Logo and Home Link: Quick navigation back to the main application
  • Authentication Links: Login and Register options for unauthenticated users
  • Upload Button: Available to authenticated members for uploading new sheet music
  • User Profile: Displays current user information and logout options
0.10.0This screenshot was taken in version: 0.10.0

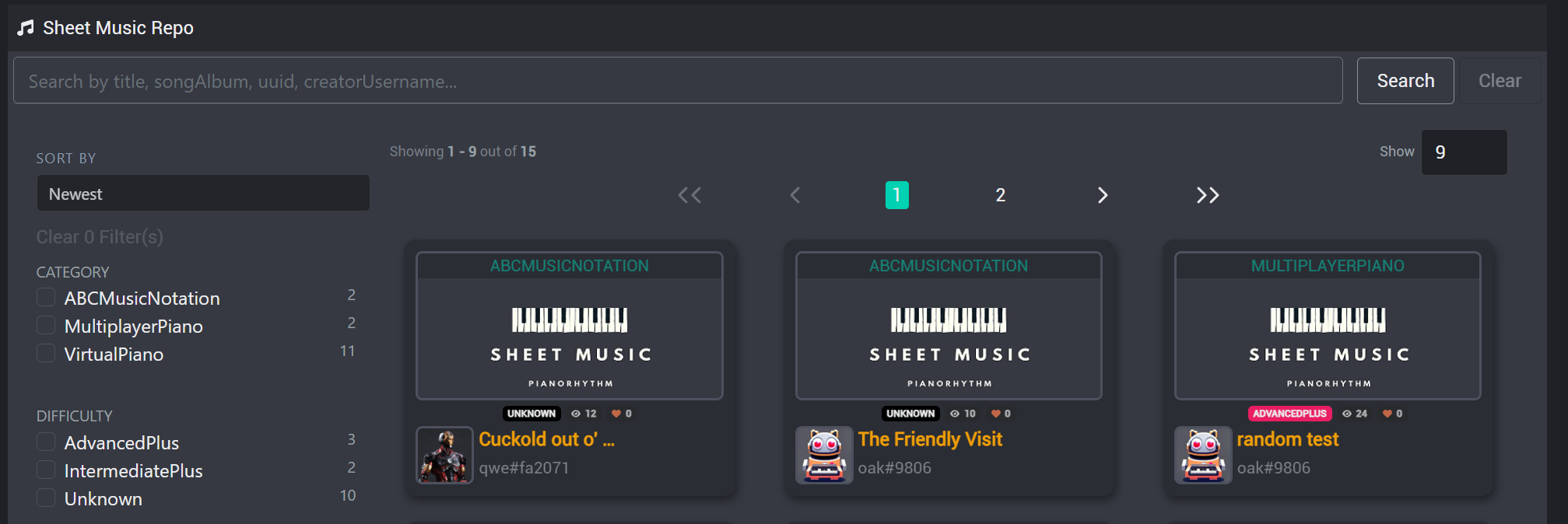

Main Content Area​

  • Search Interface: Prominent search bar with filtering capabilities
  • Results Grid: Responsive grid layout displaying sheet music cards
  • Pagination: Navigation through multiple pages of results
  • Detail Modal: Overlay for viewing individual sheet music details
0.10.0This screenshot was taken in version: 0.10.0

Search and Filtering System​

Search Configuration​

The page uses Elastic Search UI with the following search fields:

  • Title: Primary search field for sheet music titles
  • Song Album: Album or collection information
  • UUID: Unique identifier search
  • Creator Username: Search by composer/uploader

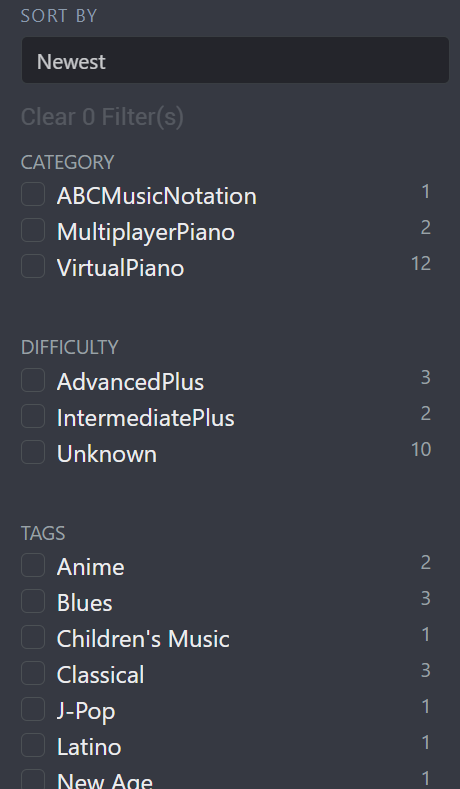

Available Facets​

  • Category: Filter by sheet music type (Virtual Piano, ABC Notation, MusicXML)
  • Difficulty: Filter by skill level (Beginner, Intermediate, Advanced, Expert)
  • Tags: Genre and style-based filtering
  • Favorites: Personal favorites (authenticated users only)
  • Approval Status: Admin-only filter for content moderation
0.10.0This screenshot was taken in version: 0.10.0

Search Features​

  • Real-time Search: Results update as you type
  • Faceted Navigation: Multiple filter combinations
  • Sort Options: Newest/Oldest ordering
  • Results Per Page: Configurable display density (9, 18, or 36 items)
  • URL State Management: Shareable search URLs

Sheet Music Display​

Card Layout​

Each sheet music item displays:

  • Thumbnail: Default or custom background image
  • Title: Primary identifier
  • Creator: Username of the uploader
  • Difficulty Badge: Color-coded skill level indicator
  • Category Badge: Format type indicator
  • Approval Status: Visual indicator for moderated content
0.10.0This screenshot was taken in version: 0.10.0

Interactive Features​

  • Click to View: Opens detailed modal view
  • Hover Effects: Visual feedback for interactive elements
  • Multi-select: Admin users can select multiple items for batch operations
  • Fade-in Animation: Smooth loading transitions

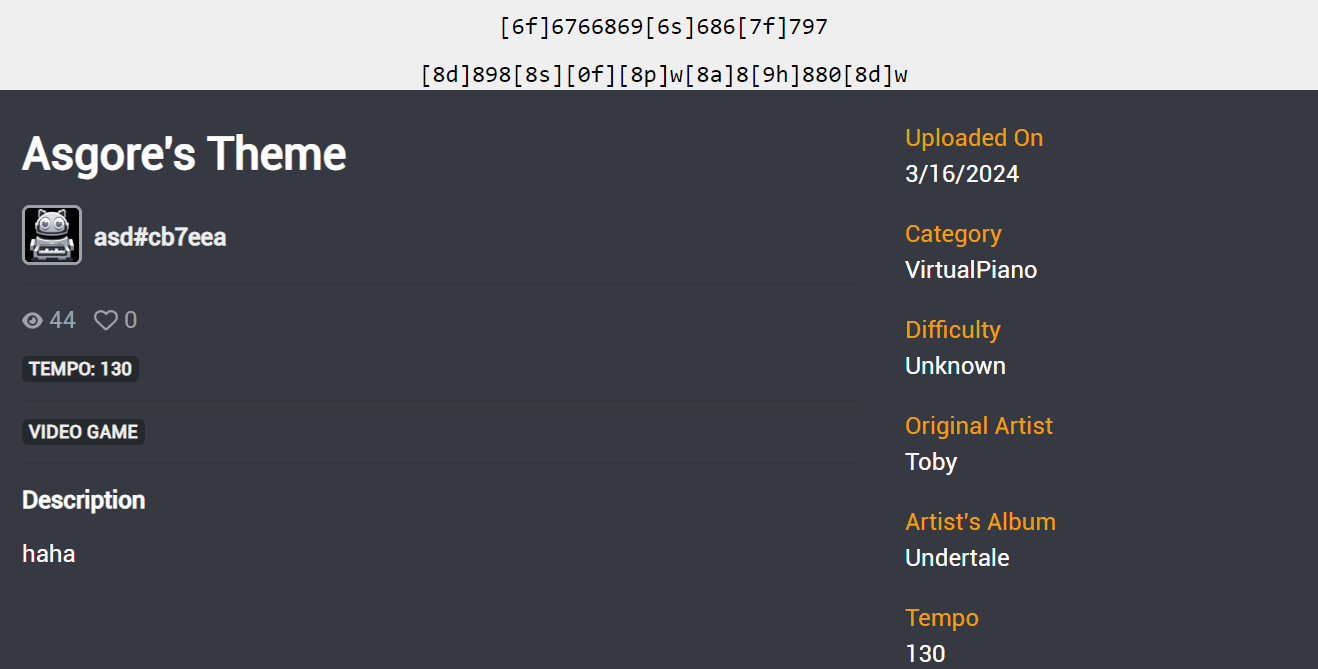

Sheet Music Details Modal​

Information Display​

  • Metadata: Title, creator, category, difficulty, creation date
  • Statistics: View count, favorites count
  • Tags: Clickable genre/style tags for related searches
  • Description: User-provided details about the piece
0.10.0This screenshot was taken in version: 0.10.0

Audio Integration​

  • MIDI Playback: Built-in audio synthesis for supported formats
  • Tempo Control: Adjustable playback speed
  • Audio Visualization: Real-time note highlighting during playback
  • Reverb Effects: Church preset for enhanced audio experience

Actions Available​

  • Play/Pause: Audio playback controls
  • Add to Favorites: Personal collection management
  • Copy to Clipboard: Share sheet music data
  • Edit: Creator and admin modification rights
  • Delete: Creator and admin removal rights
  • Approval Actions: Admin-only content moderation

Upload Functionality​

Supported Formats​

  • Virtual Piano: Custom VP format for piano compositions
  • ABC Notation: Standard music notation format
  • MusicXML: Industry-standard sheet music format

Upload Process​

  1. File Selection: Drag-and-drop or file picker interface
  2. Metadata Entry: Title, artist, album, description, tags
  3. Category Selection: Automatic detection with manual override
  4. Privacy Settings: Public, Unlisted, or Private visibility
  5. Difficulty Assignment: Skill level categorization
  6. Preview: Real-time rendering and playback testing
  7. Submission: Upload to repository with approval workflow

Validation Features​

  • Format Detection: Automatic file type recognition
  • Content Validation: Ensures proper formatting
  • Metadata Extraction: Auto-population from file headers
  • Preview Rendering: Visual confirmation before upload

User Permissions and Access Control​

Public Access​

  • Browse approved, public sheet music
  • Search and filter functionality
  • View details and basic information
  • No upload or modification capabilities

Authenticated Members​

  • All public access features
  • Upload new sheet music
  • Manage personal favorites
  • Edit own uploaded content
  • Access to unlisted content in searches

Elevated Access (Admins/Moderators)​

  • All member features
  • Content approval/disapproval workflow
  • Batch operations on multiple items
  • Access to unapproved content
  • Delete any sheet music
  • Advanced filtering options

Technical Implementation​

Core Services​

  • SheetMusicService: Main business logic and state management
  • AudioService: MIDI synthesis and playback
  • DisplaysService: Modal and UI state management
  • AppService: User permissions and core functionality
  • SearchDriver: Elastic Search UI integration

Key Components​

  • SearchUIView: Main search interface component
  • SheetMusicDetails: Detail modal component
  • SheetMusicUpload: Upload modal component
  • GenericDisplayCard: Individual sheet music card component

Data Flow​

  1. Search Request: User input triggers search driver
  2. API Call: Request sent to /api/v1/sheet_music/searchDriver
  3. Database Query: MongoDB aggregation pipeline execution
  4. Result Processing: Data transformation and filtering
  5. UI Update: Reactive state updates trigger re-render
  6. User Interaction: Click events open details or trigger actions

Performance Optimizations​

  • Lazy Loading: Components loaded on demand
  • Pagination: Limited results per page
  • Caching: Local storage for user preferences
  • Debounced Search: Reduced API calls during typing
  • Suspense Boundaries: Graceful loading states

Audio System Integration​

MIDI Synthesis​

  • Core WASM Integration: High-performance audio processing
  • Soundfont Loading: Default piano soundfont with reverb
  • Real-time Playback: Low-latency audio synthesis
  • Socket Communication: MIDI data streaming

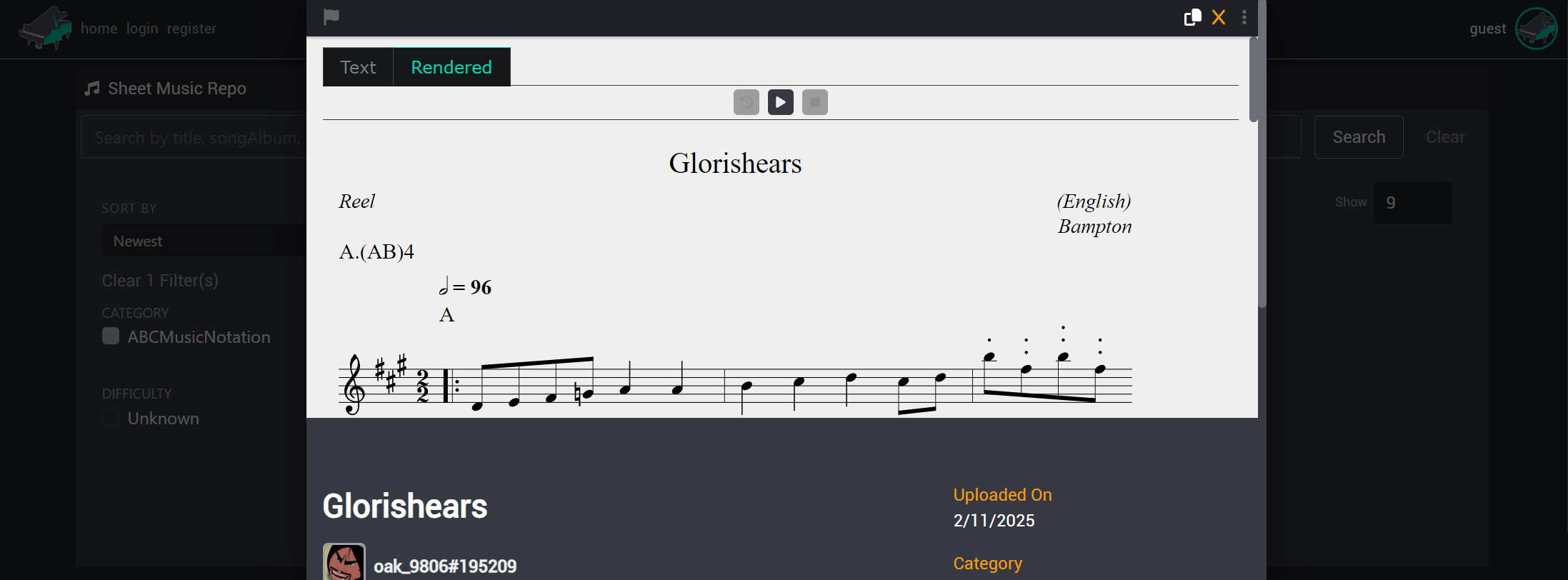

ABC Notation Support​

  • ABCJS Integration: Client-side notation rendering
  • Audio Synthesis: Built-in playback capabilities
  • Visual Highlighting: Note-by-note playback indication
  • Tempo Extraction: Automatic BPM detection
0.10.0This screenshot was taken in version: 0.10.0

Virtual Piano Format​

  • Custom Sequencer: Specialized VP file handling
  • Track Management: Multi-track composition support
  • Tempo Control: User-adjustable playback speed
  • Visual Feedback: Real-time note visualization

The Sheet Music Page represents a comprehensive solution for sheet music management, combining powerful search capabilities with rich audio integration and user-friendly upload workflows.
